Choosing or designing around a wheelchair means knowing the exact numbers — not rough guesses. Wheelchair dimensions affect everything from doorway access to daily comfort, so getting the size right matters.

This guide breaks down every standard measurement, by wheelchair type, plus how those numbers connect to real-world space like doorways and hallways.

Standard Wheelchair Dimensions (Width, Length & Seat Size)

A typical adult wheelchair follows a fairly consistent set of numbers across brands.

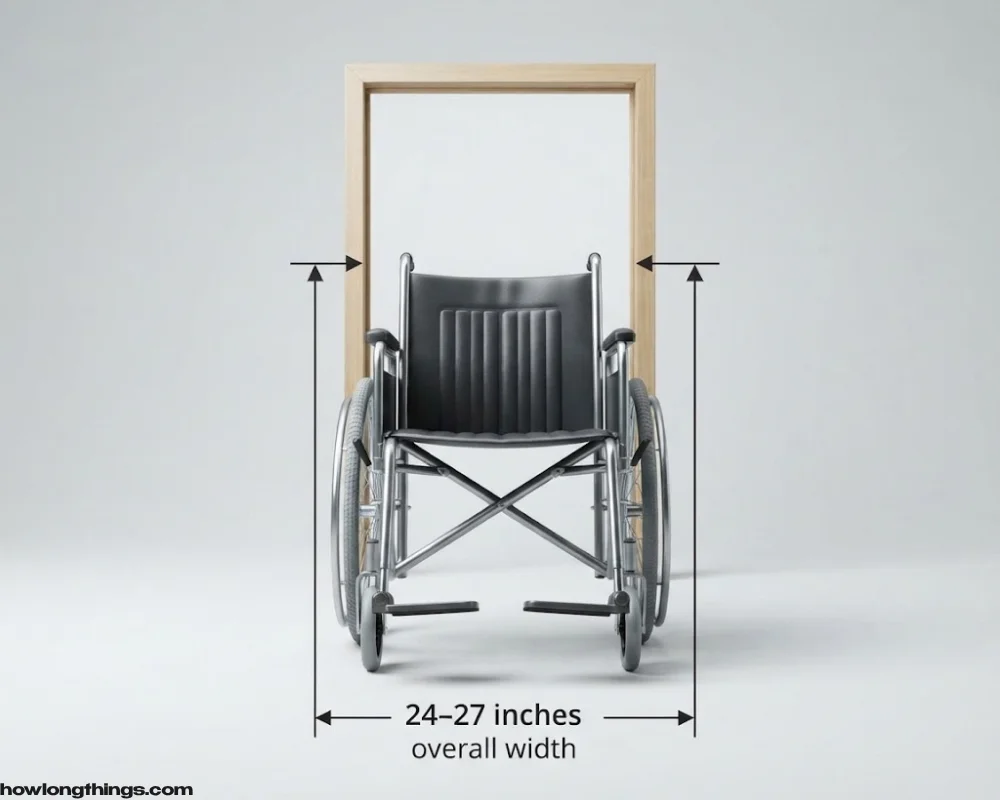

Standard wheelchair width

Most manual wheelchairs measure 24 to 27 inches wide, wheel to wheel. That range is why 32 inches became the doorway benchmark — it leaves a small buffer on either side.

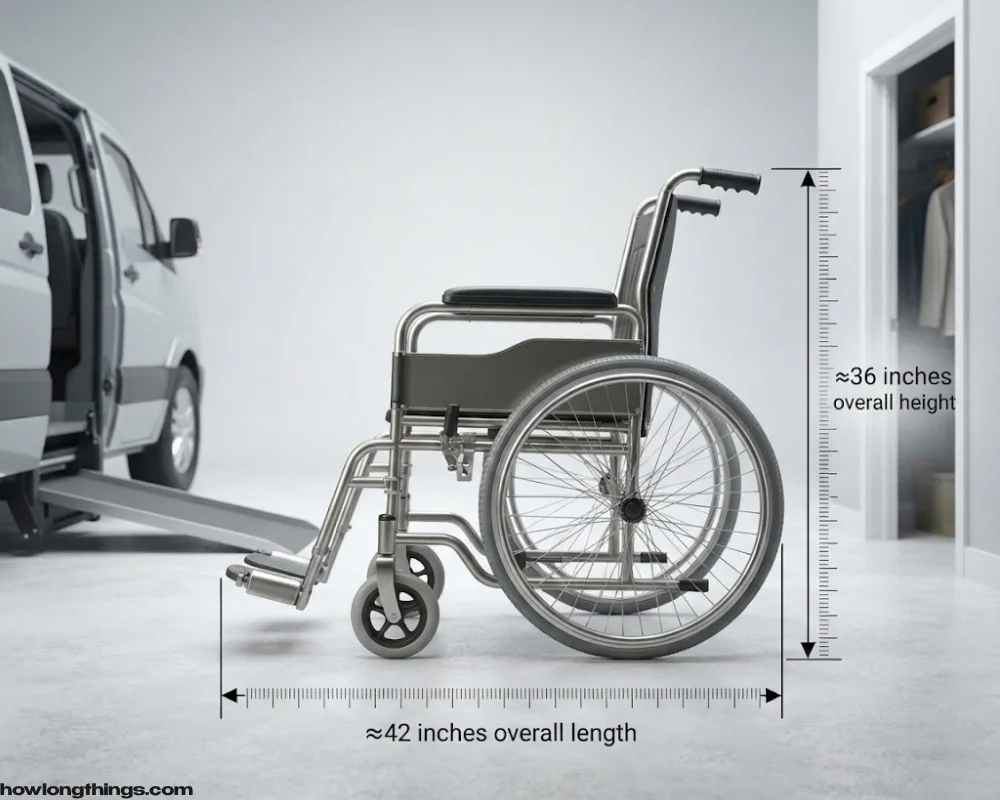

Standard wheelchair length and overall height

Overall length runs close to 42 inches, and overall height sits around 36 inches from the floor to the top of the push handles. These numbers matter for van lifts, storage closets, and turning space.

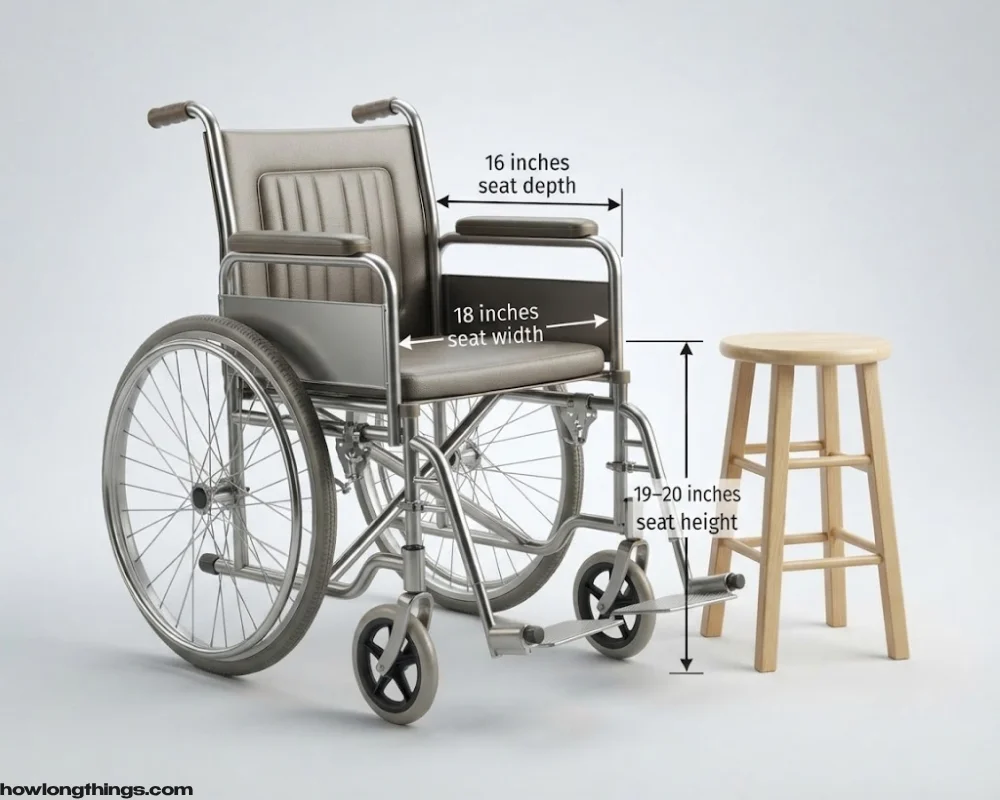

Standard seat width, depth, and height

The seat width on a standard adult chair is usually 18 inches, with a seat depth of 16 inches. Seat height typically lands around 19 to 20 inches off the ground — close to the height of a kitchen counter stool.

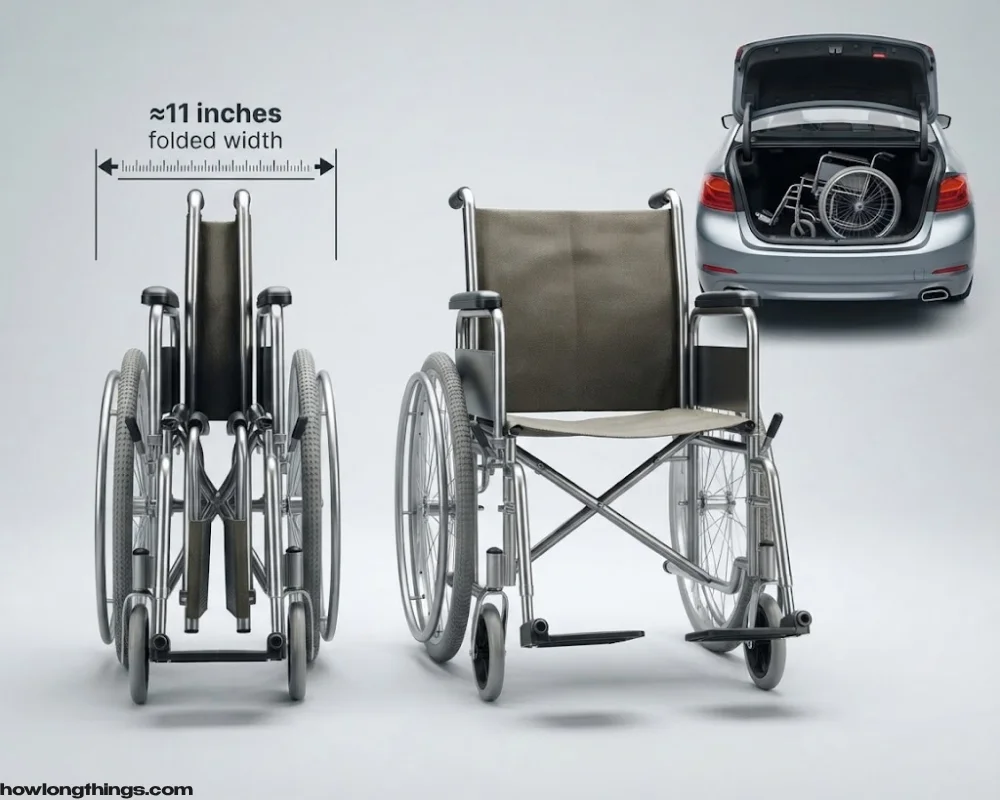

Folded wheelchair dimensions

Fold a manual chair down and the width drops to roughly 11 inches, making it narrow enough to fit through a car trunk or behind a seat.

Must Visit: Pringles Can Dimensions: Complete Size, Height & Diameter Guide (2026)

Wheelchair Sizes by Type: Manual, Electric, Transport & Bariatric

Not every wheelchair shares the same footprint. Type changes the numbers significantly.

Manual wheelchair dimensions

The lightest and most common category. Manual chairs stick closest to the standard numbers above — easy to fold, easy to lift, and built for self-propulsion or a caregiver push.

Electric (power) wheelchair dimensions

Power chairs run wider and longer, often 25 to 28 inches wide and up to 48 inches long, because they carry a battery pack and motor housing. Weight jumps too, often past 100 pounds, which changes how much floor space a turn requires.

Transport wheelchair dimensions

Built for portability, not self-propulsion. These chairs use smaller rear wheels, trimming both width and folded size — a smart pick for quick trips like doctor visits or air travel.

Bariatric and pediatric wheelchair dimensions

Bariatric chairs widen the seat width to 22 inches or more, with higher weight capacities built into a reinforced frame. Pediatric chairs shrink every measurement, with seat widths starting around 8 inches for small children.

Type	Width	Length	Seat Width	Seat Height	Weight Capacity
Manual	24-27 in	~42 in	18 in	19-20 in	250-300 lb
Electric/Power	25-28 in	Up to 48 in	18-20 in	19-20 in	300+ lb
Transport	22-24 in	~38 in	16-18 in	19-20 in	250-300 lb
Bariatric	27-34 in	~44 in	22+ in	20-21 in	400-700 lb

How to Measure a Wheelchair for the Right Fit

Picking a size isn’t just about the chair — it’s about the person sitting in it.

Measuring seat width and depth for the user

Sit the person on a firm surface. Measure hip-to-hip for width, then measure from the back of the buttocks to behind the knee for depth. Add roughly one inch on each side for clothing and movement.

Measuring seat height and armrest height

Measure from the floor to the back of the knee for seat height, keeping the foot flat. For armrest height, measure from the seat surface to the bottom of a bent elbow while relaxed.

Common sizing mistakes to avoid

A seat that’s too wide forces the user to lean for support. A seat that’s too narrow causes pressure on the hips. Guesswork here leads directly to discomfort, so always measure the individual rather than relying on age or weight alone.

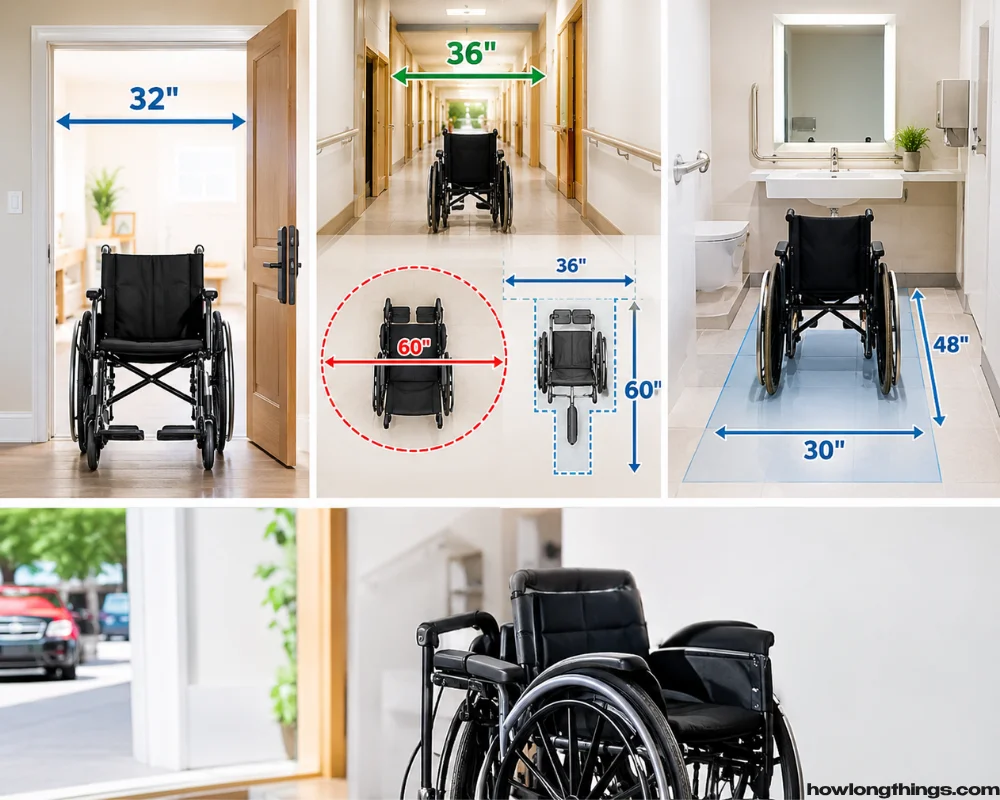

Wheelchair Dimensions and Doorway & Space Clearance

Even a well-fitted wheelchair is useless if it can’t move through the home.

Minimum doorway width for wheelchair access

The Americans with Disabilities Act sets the bar at a clear opening of 32 inches, measured with the door open at 90 degrees. That number gives most standard chairs enough room without scraping knuckles on the frame.

Turning radius and hallway clearance

Hallways where a wheelchair needs to turn should measure at least 36 inches wide. For a full turn, accessibility guidance calls for a 60-inch diameter circular clearance, or a T-shaped space measuring 36 inches by 60 inches on each arm, so the chair can pivot without backing into a wall.

ADA wheelchair space requirements

Beyond doorways, ADA design standards call for clear floor space of at least 30 by 48 inches in front of fixtures, counters, and controls — enough room for a wheelchair to approach straight-on without extra maneuvering.

Wheelchair Dimensions vs. Standard Chair Dimensions

It helps to see how wheelchair sizing compares to an everyday chair.

Standard chair height vs. wheelchair seat height

A standard dining or office chair height runs about 17 to 19 inches at the seat — nearly identical to a wheelchair’s 19 to 20 inches. That overlap is intentional, so transfers between a wheelchair and a regular chair stay level and safe.

Key dimension differences explained

The real gap is in width and footprint. A standard chair rarely exceeds 20 inches wide overall, while a wheelchair adds wheels, push rims, and armrests, pushing total width past 24 inches. Depth also grows, since a wheelchair needs room for footrests that a normal chair doesn’t have.

FAQs About Wheelchair Dimensions

What is the standard size for a wheelchair?

A standard adult wheelchair measures about 24 to 27 inches wide, 42 inches long, and 36 inches tall, with an 18-inch seat width.

What are the correct measurements for a wheelchair?

The core measurements are seat width, seat depth, seat height, overall width, overall length, and armrest height — each should be matched to the user’s body, not just picked by age or general size.

What is the total width of a 20 inch wheelchair?

A wheelchair with a 20-inch seat width typically has a total outer width of about 24 to 25 inches, once the wheels and side frames are included.

What is the standard dimension of a chair?

A standard chair generally measures 17 to 19 inches in seat height and around 18 to 20 inches in seat width, close to wheelchair seat sizing.

What is a standard size chair height?

Standard chair height sits between 17 and 19 inches from floor to seat — the same range used for most wheelchair seat heights, which keeps transfers level.

Conclusion

Getting wheelchair dimensions right isn’t just a numbers exercise — it shapes comfort, safety, and independence every day. Whether you’re buying a chair, fitting one to a user, or planning accessible space, these measurements give you a solid, factual starting point.
