A 12 oz can takes a label about 8.125″ wide by 3.625″ tall. A 16 oz tallboy takes about 8.125″ by 5″.

This guide covers the beer can label size for every common can. It also shows how to calculate, design, and print your own.

Standard Beer Can Sizes and Diameter Codes

Every label starts with the can. Know the can, and the label size follows.

Can Type	Volume	Diameter	Height	Full-Wrap Label (W x H)
12 oz standard	355 mL	2.6875″	about 4.83″	8.125″ x 3.625″
16 oz tallboy	473 mL	2.6875″	about 6.125–6.19″	8.125″ x 5″
19.2 oz stovepipe	568 mL	2.6875″	about 6.3–7.3″	about 8″ x 6–6.5″
12 oz sleek	355 mL	about 2.1–2.24″	about 5.9–6.1″	about 7″ x 5″

Most US cans use the 211 diameter code. The first digit is whole inches. The last two digits are sixteenths of an inch. So 211 means 2 11/16″, or 2.6875″ (about 66 mm).

The diameter stays the same across 12, 16, and 19.2 oz cans. That lets a brewery run all three on one filling and seaming line. Only the can height changes.

This is good news for label width, which barely moves between sizes. Exact specs still vary by can maker, so measure your own cans before you order.

12 oz Beer Can Label Dimensions (Width and Height)

A 12 oz beer can label is about 8.125″ wide by 3.625″ tall for a full wrap. Half and optimal wraps run narrower.

Full Wrap Label Size

A full wrap is about 8.125″ x 3.625″. It circles the whole can and leaves a tiny seam gap. It gives you the most room for art, so it suits bold IPA and seasonal designs.

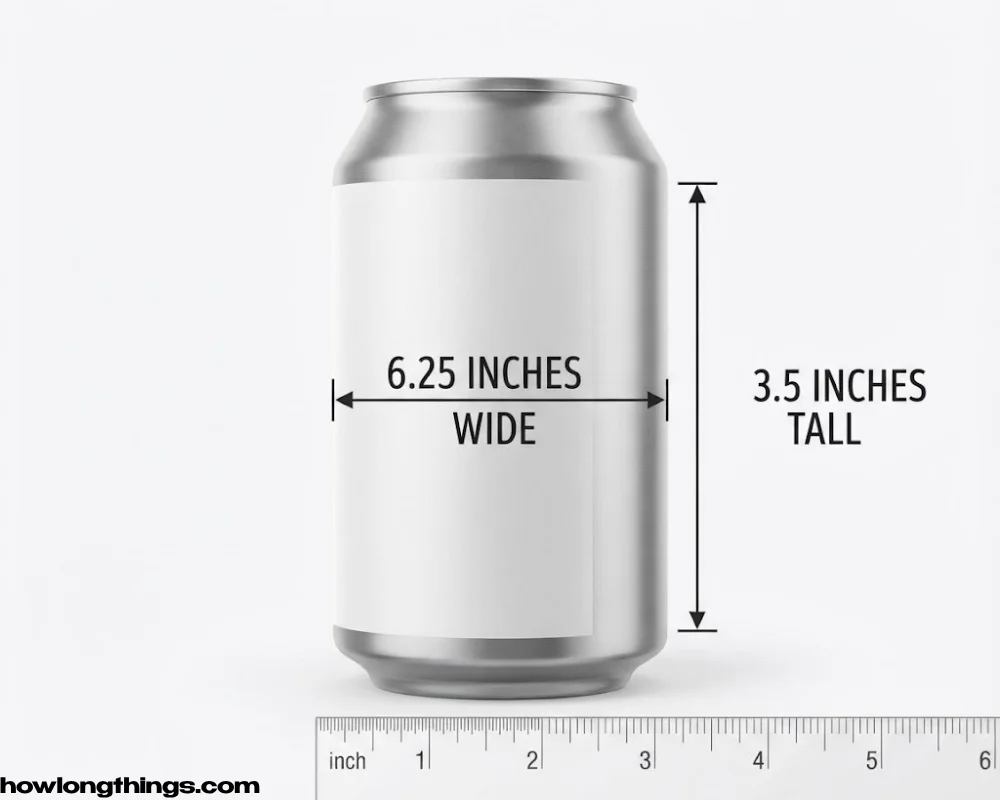

Half Wrap Label Size

A half wrap is about 6.25″ x 3.5″. It covers the front and lets bare aluminum show. It uses less material and gives a clean, modern look.

Optimal Wrap Label Size

An optimal wrap is about 7.5″ x 3.625″. The wider gap makes hand application easier. The ends never fight each other.

Why 3.625″ tall? A can has a straight wall in the middle and curves at the top and bottom. The label stays on the flat part, with about 0.25″ of space at each end.

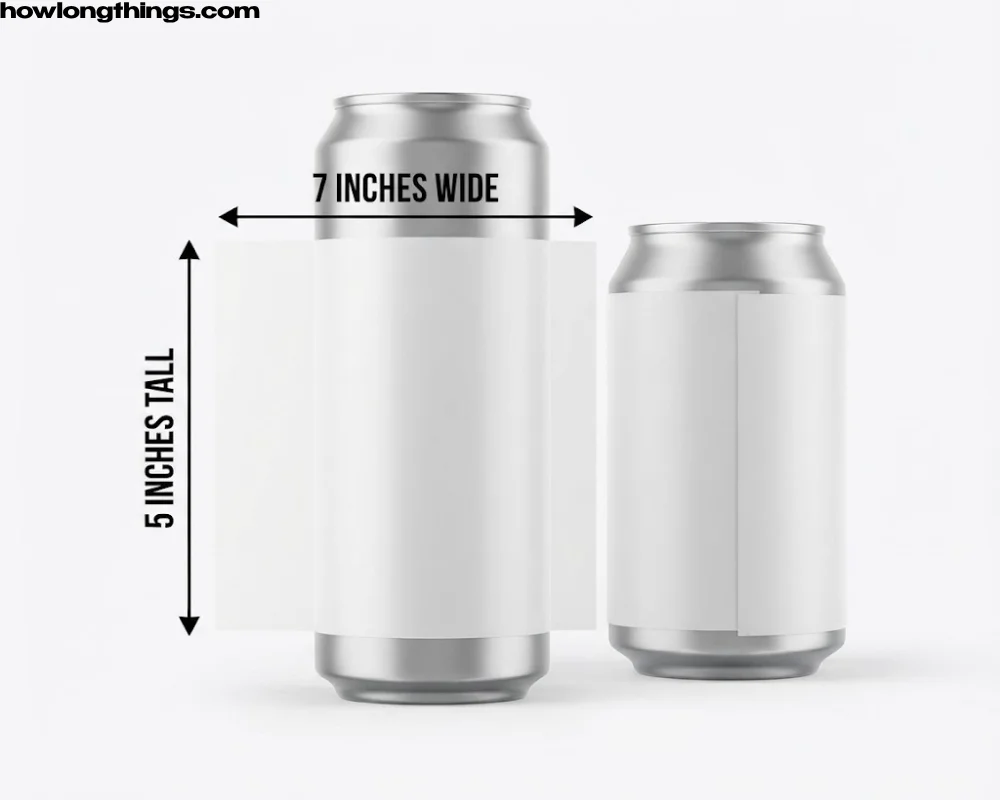

Sleek and slim cans

Sleek and slims need their own size. Their body is narrower, so a 211 label will leave the seam floating. Labels for these cans often run about 7″ wide by 5″ tall.

16 oz, 19.2 oz and Other Beer Can Label Sizes

Taller cans need taller labels. The width stays close to the 12 oz size.

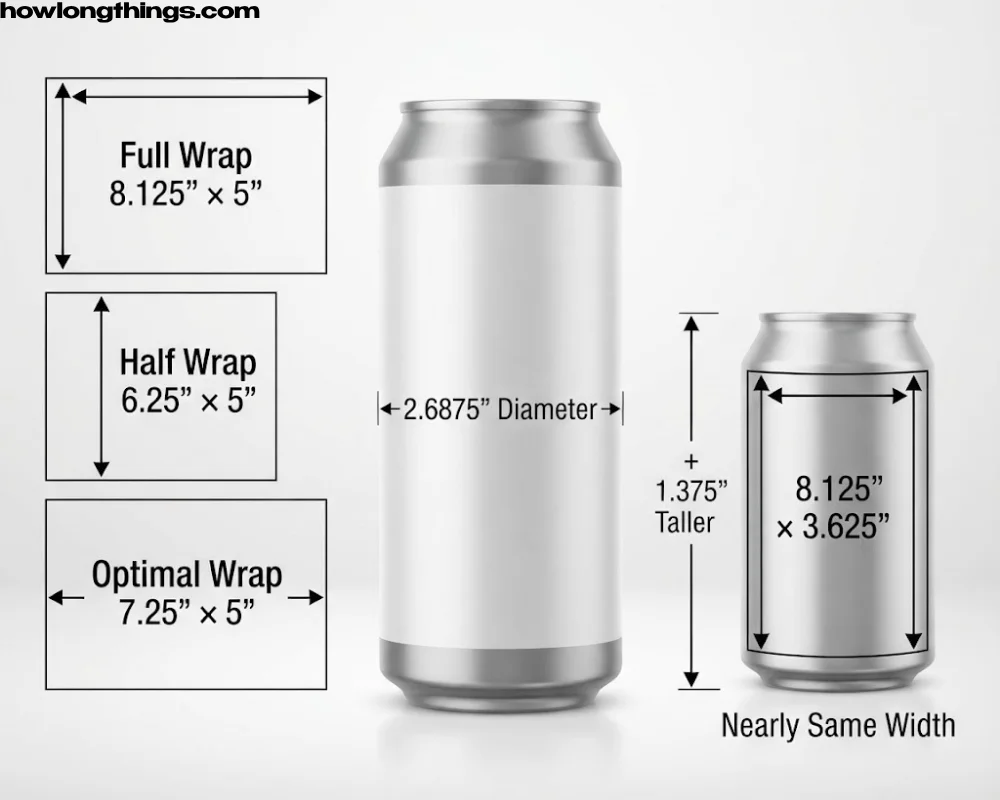

16 oz Tallboy Label Size

A 16 oz beer can label is about 8.125″ x 5″ for a full wrap. A half wrap is about 6.25″ x 5″. An optimal wrap is about 7.25″ x 5″.

That is roughly 1.375″ taller than a 12 oz label. Since the diameter is the same, you can reuse the width and change only the height.

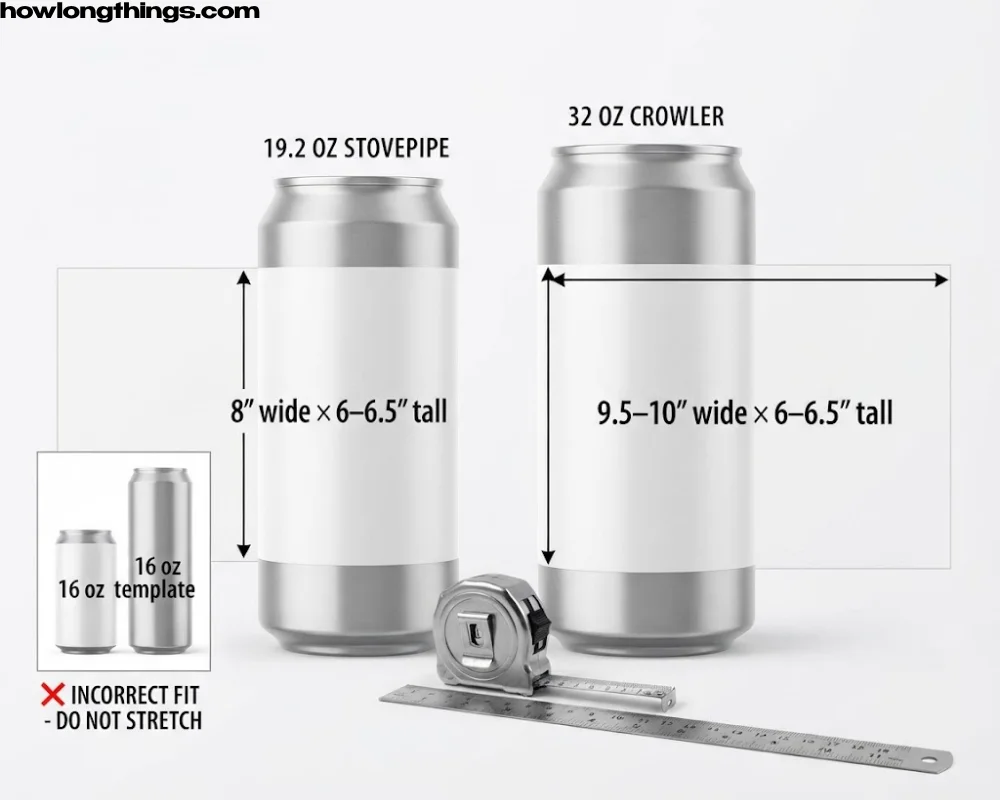

19.2 oz Stovepipe and 32 oz Crowler Label Size

These sizes are less standard. A stovepipe label runs about 8″ wide by 6–6.5″ tall. A 32 oz crowler label runs about 9.5–10″ wide by 6–6.5″ tall.

Sources differ here, so measure the actual can. Never stretch a 16 oz template onto a stovepipe.

Must Visit: Aluminum Can Dimensions: Complete Size, Height & Diameter Guide (2026)

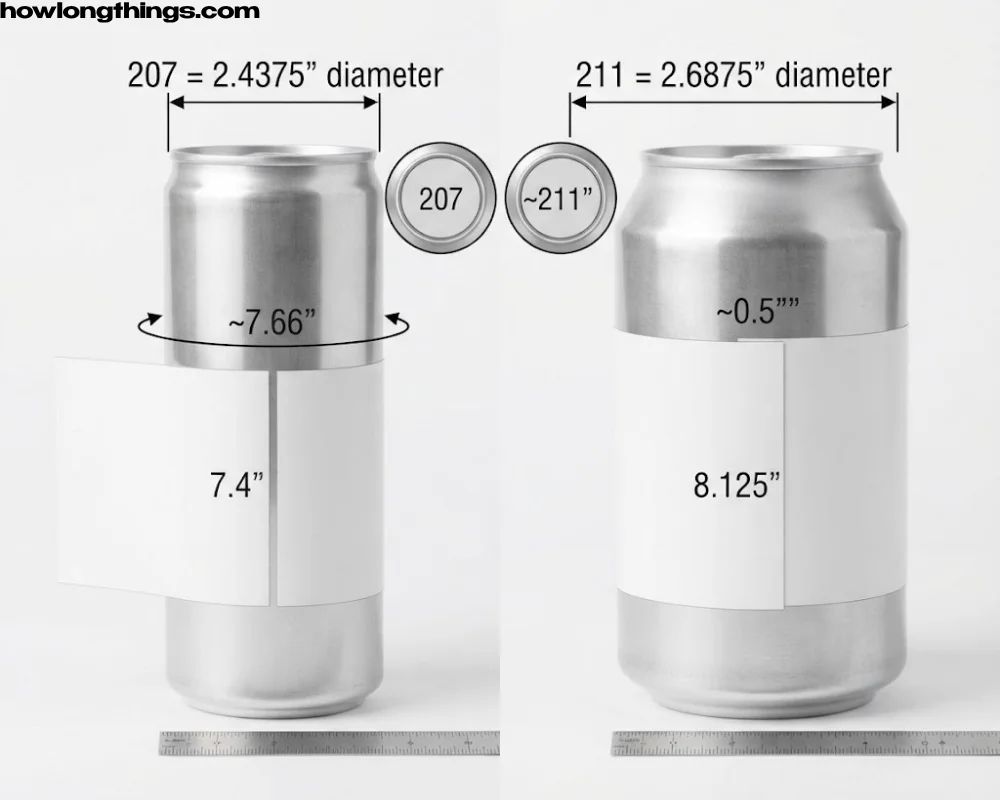

207 vs 211 Can Diameter

Since about 2020, some 16 oz cans are slimmer. A 207 can is 2 7/16″ (2.4375″) across. It stands taller to hold the same volume.

Its circumference is only about 7.66″. A standard 8.125″ label would overlap by about half an inch. Ask your supplier which code you are getting.

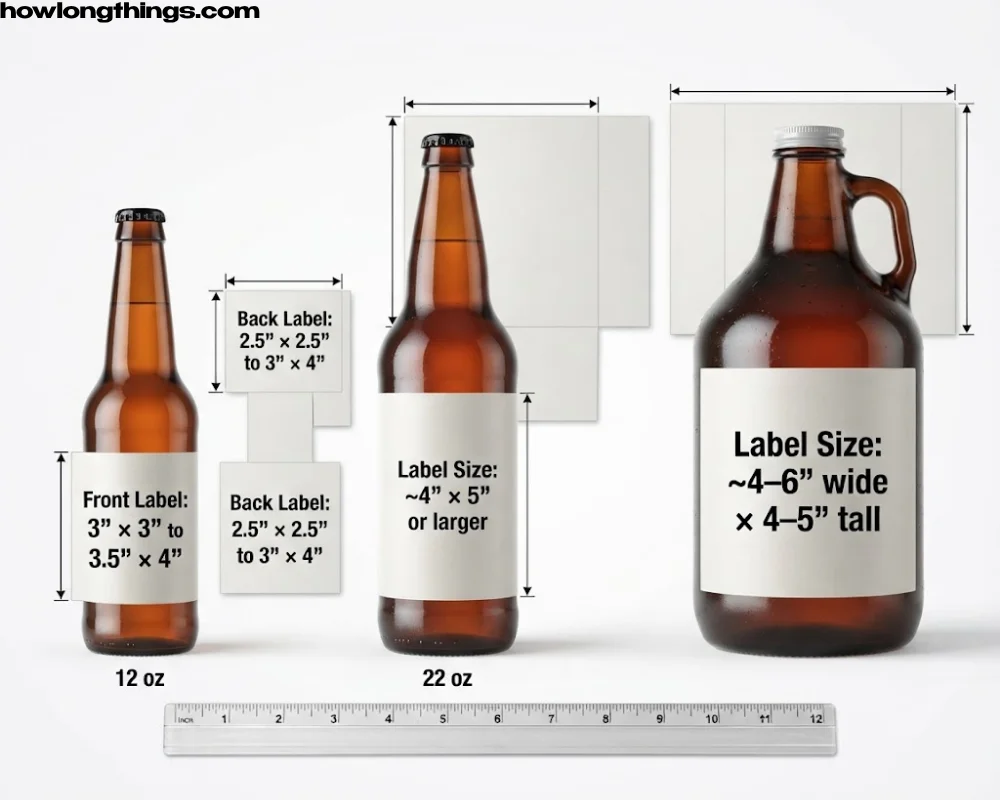

Bottle and Growler Label Sizes

A 12 oz bottle front label runs about 3″ x 3″ to 3.5″ x 4″. The back label runs about 2.5″ x 2.5″ to 3″ x 4″.

A 22 oz bomber uses about 4″ x 5″ or larger. A growler label runs about 4–5″ tall by 4–6″ wide.

How to Calculate Beer Can Label Size

Label width equals diameter times pi, minus a small gap. Label height equals the flat body minus margins.

Here is the width math for a 211 can:

• 2.6875″ x 3.1416 = about 8.44″ of circumference.
• Subtract a 0.25–0.375″ gap for a clean seam.
• That leaves about 8.07–8.19″, so 8.125″ fits well.

For height, measure the straight wall only. Then take off about 0.25″ at each end. If the flat body is 4.125″, the label is 3.625″ tall.

A 207 can works the same way. Its circumference is about 7.66″, so a label near 7.4″ leaves the usual gap.

Overseas printers may quote in metric. One inch equals 25.4 mm, so 8.125″ is about 206 mm.

Then test it in two steps:

• Paper template: Cut a strip to size and wrap it around a real can. It costs nothing and shows a bad fit at once.
• Digital calipers: Measure the diameter in a few spots. Can batches can differ by a millimeter or two.

Beer Can Label Design and Print Requirements

Size is only half the job. Your file also needs bleed, a safe zone, and the right legal text.

File setup

• Add about 0.125″ of bleed on all sides. An 8.125″ x 3.625″ label becomes about an 8.375″ x 3.875″ canvas. Some printers ask for 1/16″, so confirm first.
• Keep logos and key text at least 0.25″ inside the trim line.
• Build at 300 DPI in CMYK, with fonts turned to outlines.
• Save as PDF, AI, or EPS.

Legal text

The TTB requires the Government Warning on US beer labels. On containers over 237 mL, up to 3 liters, the letters must be at least 2 mm tall. The words “GOVERNMENT WARNING” must be in bold capitals.

Materials

Beer can labels are usually 2–4 mil thick. Paper suits dry shelves. Vinyl and BOPP film hold up better in ice buckets.

Recyclability matters too. The US aluminum can recycling rate was 43% in 2023, according to the Aluminum Association and Can Manufacturers Institute. A label with low adhesive residue helps keep cans in the loop.

Label formats

• Pressure-sensitive label: the most common choice.
• Shrink sleeve: a 360-degree wrap, usually about 5–6″ tall on a 12 oz can.
• Direct-printed can: no label at all. The printable area on a 12 oz standard can is about 7.6″ x 4.13″. Minimums often run about 1,500–2,000 cans per design.

Check your applicator’s width limit too. Many entry-level machines top out near 8.5″ wide.

Pre-print checklist

• Can diameter and height confirmed
• Wrap style chosen
• Bleed and safe zone set
• Warning text at 2 mm or larger
• Paper mock-up tested on a real can

Beer Can Label Size FAQs

What is the size of a beer can label?

A 12 oz full-wrap label is about 8.125″ x 3.625″. A 16 oz tallboy label is about 8.125″ x 5″. Half and optimal wraps are narrower, at about 6.25″ and 7.25–7.5″ wide.

What is the standard size of a beer can?

A 12 oz can is about 4.83″ tall with a 2.6875″ diameter (the 211 code). A 16 oz can has the same diameter and stands about 6.125–6.19″ tall.

What are the dimensions of a label?

Label width comes from the can’s circumference minus a gap. Height comes from the flat body minus margins. On a 211 can, that means about 8.125″ wide. Height depends on can size, such as 3.625″ for 12 oz.

How to design a beer can label?

Measure the can, then work out the width and height. Add 0.125″ of bleed and a 0.25″ safe zone. Build at 300 DPI in CMYK with outlined fonts. Check the warning text size, then test a proof on a real can.

How can I design a label?

Pick a wrap style and start from a printer template or paper mock-up. Keep the logo and legal text inside the safe zone. Place the logo in the upper third, where the eye lands first. Test the proof before you order.

What is the standard size of a bottle label?

A 12 oz bottle front label is about 3″ x 3″ to 3.5″ x 4″. The back label is about 2.5″ x 2.5″ to 3″ x 4″. Bigger bottles, like 22 oz bombers, use larger labels.

Conclusion

Two numbers drive every beer can label dimensions size: the can’s diameter and its straight-wall height. For a standard 211 can, that means a 12 oz label of about 8.125″ x 3.625″ and a 16 oz label of about 8.125″ x 5″. Always check whether your can is a 211 or a 207, because a slimmer can needs a narrower label. Add bleed, keep key text inside the safe zone, and make sure the Government Warning meets the 2 mm rule. Before you print, wrap a paper template around a real can, since one quick test can save you a costly reprint.
